Project Info
Project Description
- Luxury boutique hotel in Charleston’s Historic District
- Vulnerable to flash floods, hurricanes and storm surge
- FEMA required floodproofing measures in the floodzone
- Flood Log™ Flood Barriers and Doors installed at first-floor windows and doors
- Modular system withstands high velocity water loads and heavy impacts

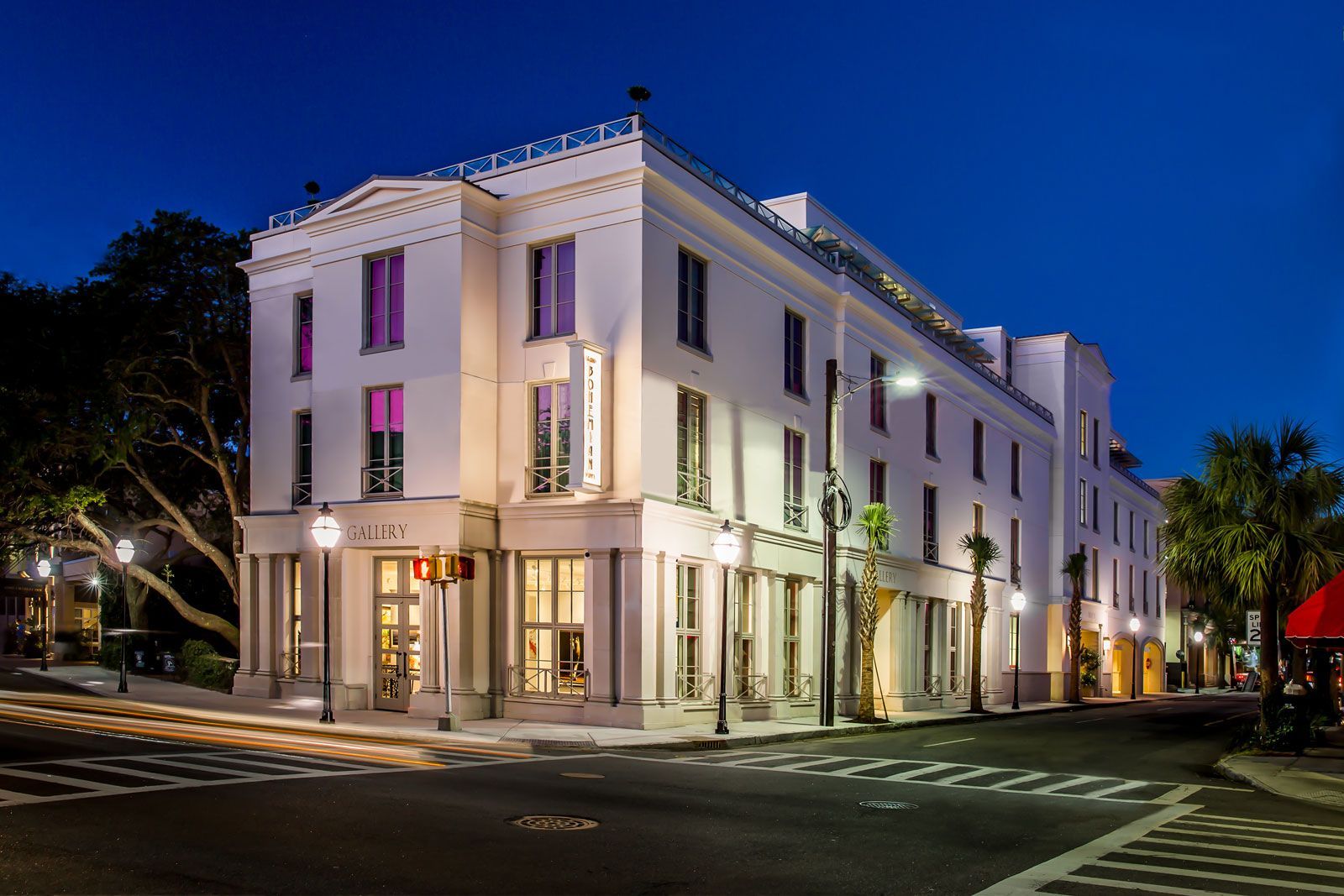

The Grand Bohemian Hotel Charleston is a 50-room luxury boutique hotel, located in Charleston’s Historic District. The 57,125 square foot property features an art gallery, wine blending and tasting room, specialty coffee shop, fitness room, and rooftop restaurant and terrace providing breathtaking views of historic downtown Charleston.
Located in the Atlantic Coastal region, the City of Charleston is prone to frequent flooding from the Atlantic Ocean and inland from rivers and their tributaries. The city is vulnerable to storm surge, as well as flooding from heavy rains and high tides.
The Grand Bohemian Hotel is situated in a floodzone at the corner of Meeting and Wentworth streets. For nonresidential structures in that zone, FEMA requires that buildings be elevated or that design measures be taken to floodproof the structure.
For the Grand Bohemian, the architect for building construction firm Mashburn Construction specified floodproofing solutions from Flood Panel LLC. Flood Panel Flood Log™ Flood Barriers and Flood Panel Doors were installed at every first-floor window and door opening.

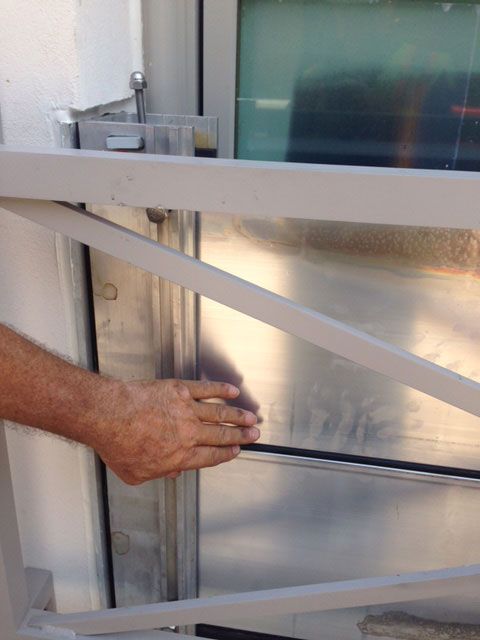

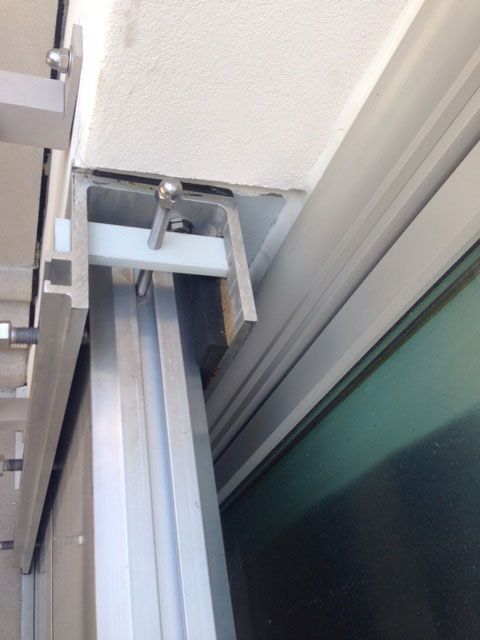

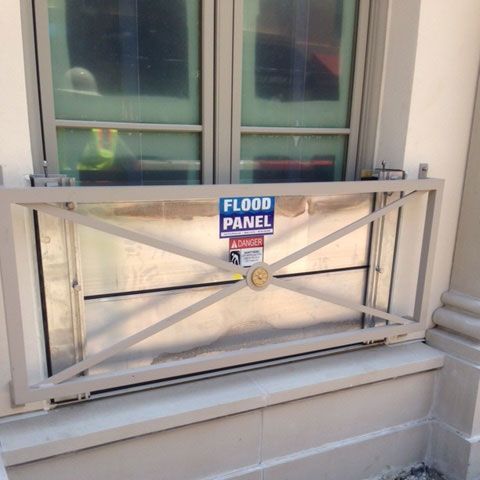

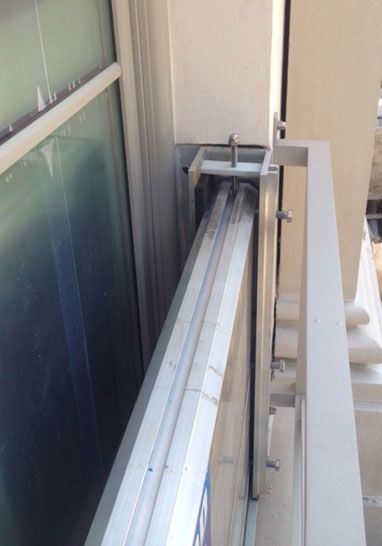

The Flood Log flood Barrier is a modular system designed to withstand high velocity water loads and is highly resistant to heavy impacts. The mounts were permanently fixed into the hotel structure for seamless design and ease of installation during a flood event. The Flood Panel Door operates like a normal pedestrian door, however it has been internally reinforced and ensures a leak-free seal when fully closed. Both solutions provide effective, zero-tolerance flood protection for the Grand Bohemian Hotel from flash floods, hurricanes and storm surge.
For more information or to request a quote, visit www.floodpanel.com or call 1-888-744-2607.
Top Photo by: Benton/Henry Photography
